Description

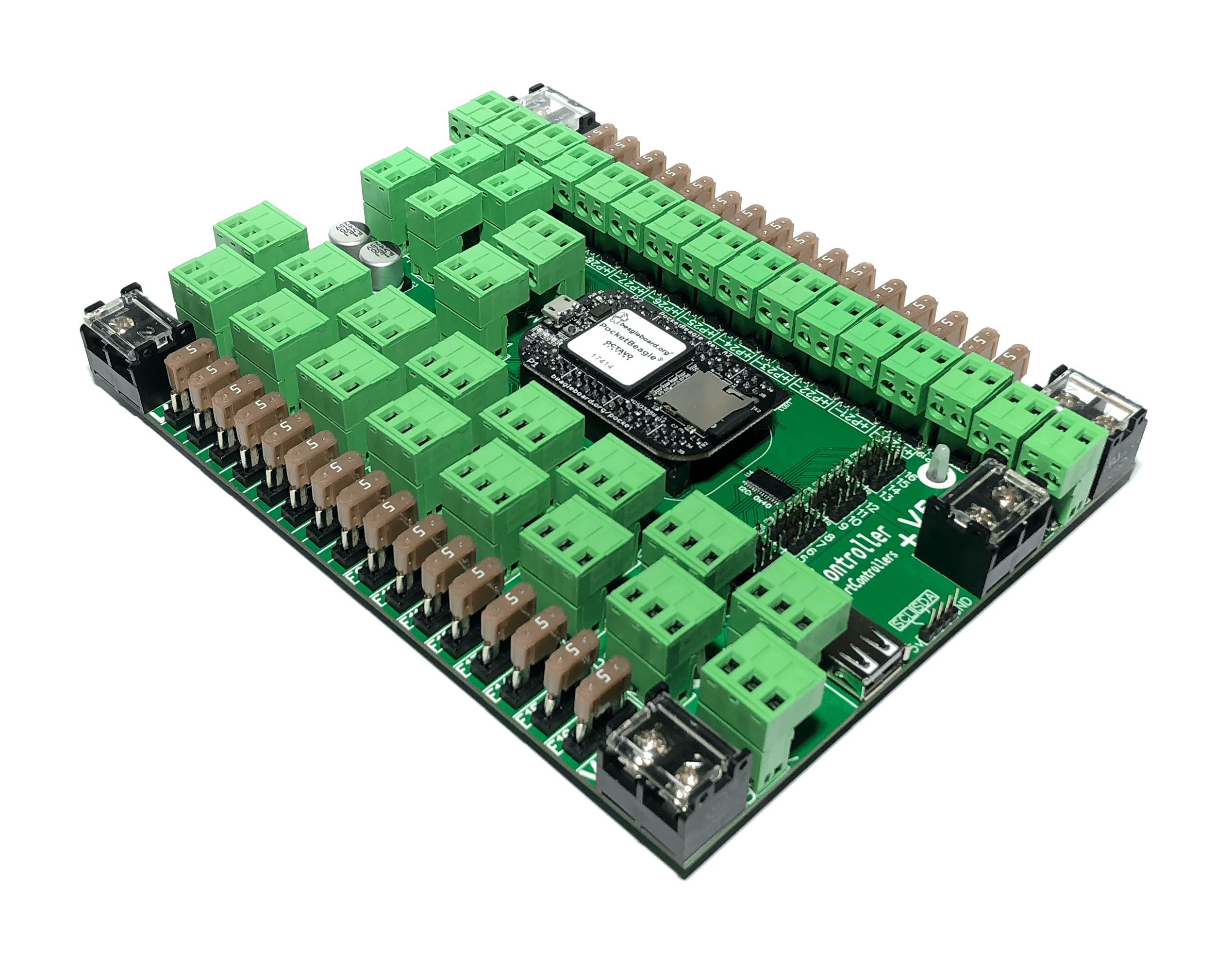

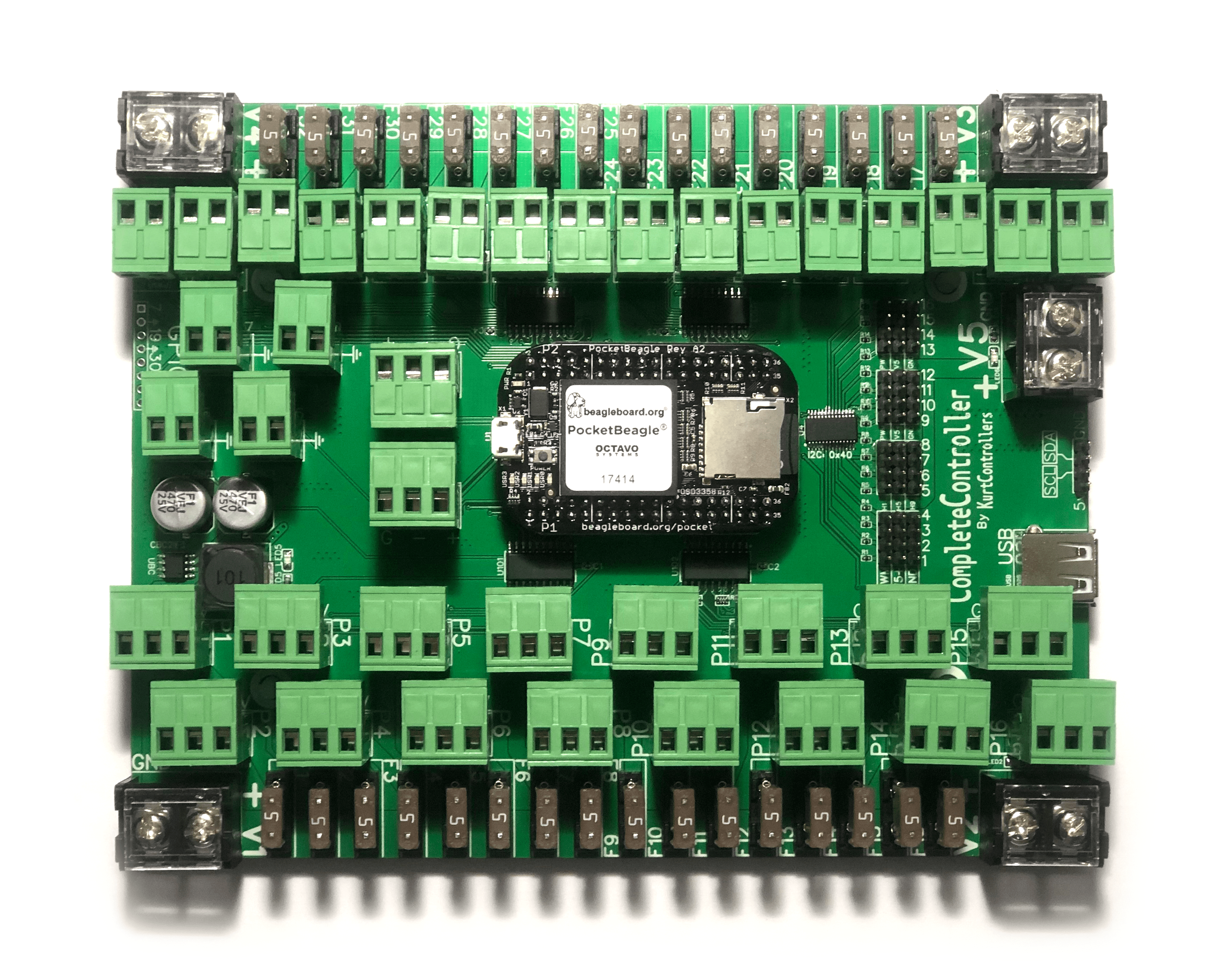

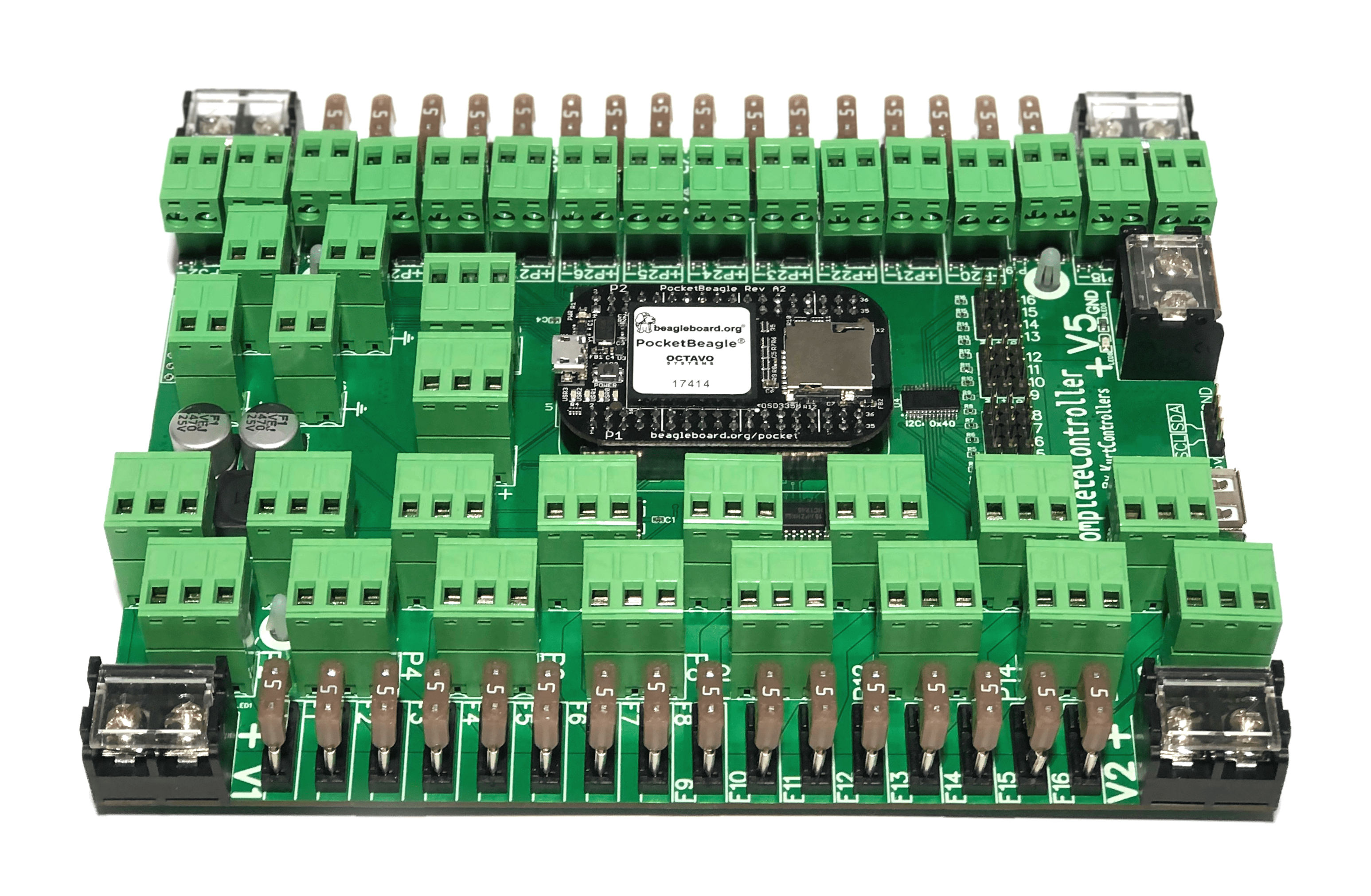

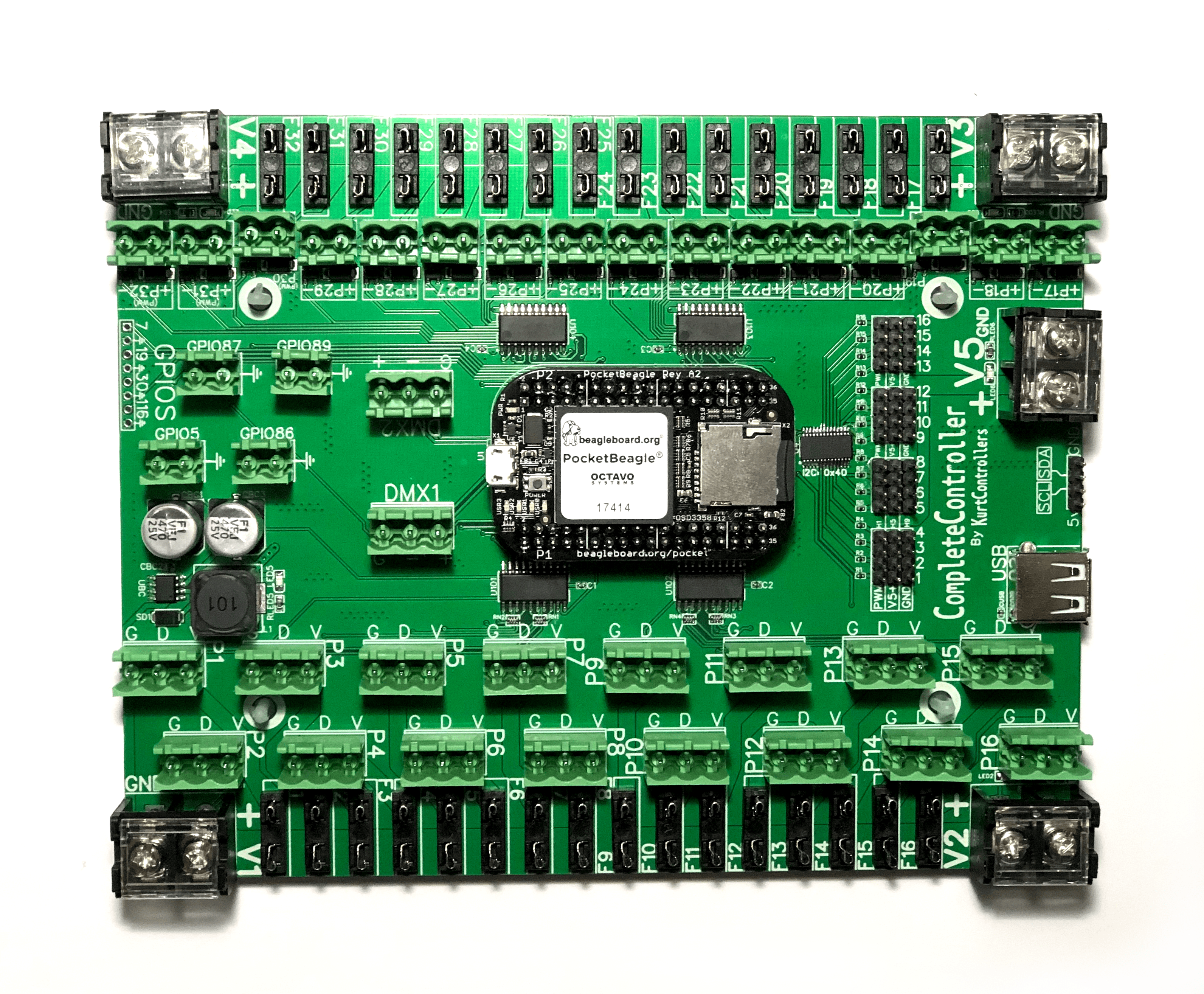

PocketBeagle based show controller. This Flagship controller allows you to control virtually anything in your scene; 16 WS28xx pixel ports, 16 4A DC solid-state outputs, 16 servo motor outputs, 2 universes of DMX 512, 8 trigger inputs, and a female USB type-A 2.0 OTG port for audio and networking to other PB-based controllers and e1.31/DDP devices! The controller comes with pluggable screw terminals, fuses, PocketBeagle SBC, and SanDisk Ultra 32GB micro SD card pre-flashed with FPP version 5.5
5 voltage inputs:
V1; WS28xx ports 1-8, controller power. (5-24V)
V2; WS28xx ports 9-16. (5-24V)
V3; DC ports 17-24 (5-24V)
V4; DC ports 25-32. (5-24V)
V5; Servo motor power. (5-24V)
Each voltage input screw terminal is rated for 30A. Each port comes fused at 5A.
Xlights controller type: Vendor:ScottNation Model :PB16 Variant:No Expansion
Xlights controller type (older versions of Xlights): Vendor:FPP Model :PB16 Variant:No Expansion
Visit our GitHub to download FPP backups and xLights show folder for easy setup and testing.
