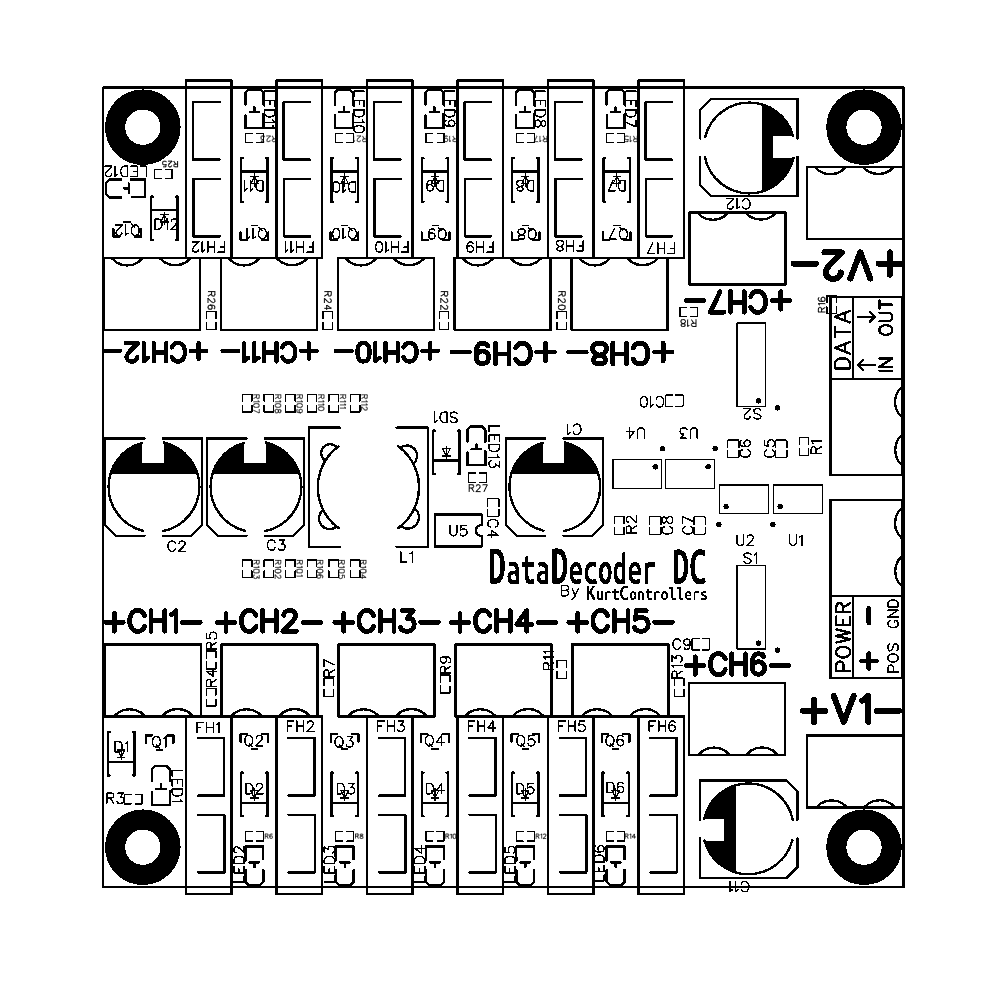

Description
This controller takes in 12 channels (4 pixels worth) of WS28xx data and switches 12 DC outputs (24V 4A max). Includes data in and out for chaining multiple DataDecoder controllers together.
Full 2kHz PWM dimming for each DC output.
3 voltage inputs:
V1; DC outputs 1-6 (24V max)
V2; DC outputs 7-12 (24V max)
POWER: controller power, sourced from ws28xx line (5-24V)
